| 产品特性：声光 | 是否进口：否 | 产地：中国 |
| 品牌：TC | 型号：TC5266 | 类型：声光报警器 |
| 订货号：TC5266 | 货号：TC5266 | 规格：115mm×55.3mm×140mm |
| 是否跨境货源：否 |

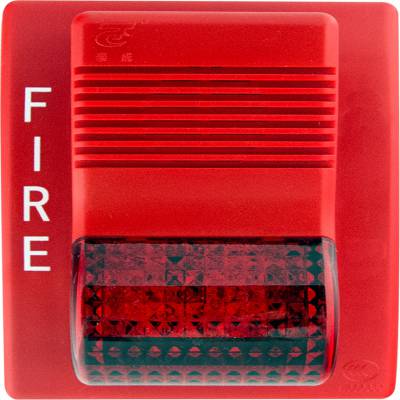

TC声光报警器 声讯器 Addressable sounder strobe siren alarm LPCB approved 出口 英文版
General Description
Installed in public places
? A kind of audio and visual alarm device used to warn people in field
when fire occurs
? Four wires:non-polarized signal two-wire, and non-polarized
DC24V power two-wire
? Built-in microprocessor
? Self-diagnostic function
? Electronically coding
? Approvals：LPCB（EN54-3） CE
Specifications
Operating voltage Loop: 24V (16V～28V);Power: DC24V (DC19V～DC28V)
Standby current Loop: ≤0.2mA;Power: ≤0.5mA
Active current Loop: ≤1.5mA;Power: ≤50mA
Operating Environment
Indoor (Non-residential);Temperature: -10°C～+50°C;
Relative Humidity: ≤95%（40±2°C）
Sound level 80dB～115dB (A weighted)
Pitch shift periodic 3.5S～4.5S
Basic flashing frequency 1Hz～2Hz
Weight 200g
Dimension (L×W×H) 115mm×55.3mm×140mm
