| 是否进口：否 | 产地：中国大陆 | 品牌：FW |
| 型号：FW19090 | 类型：模块 | 3C证书编号：- |
| 订货号：FW19090 | 货号：FW19090 | 规格：56mm*56mm*21.5mm |
| 是否跨境货源：否 |

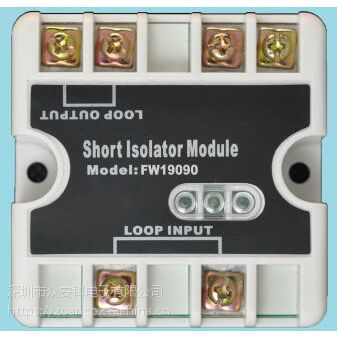

消防隔离模块 Short ***lator Module 短路隔离器FW19090
When a bus short circuit is removed, the ***lated part can be automatically integrated into system
Nonpolar input/output signal.
Choice of two output current of 100mA and 200mA.
Operating Voltage Range 15 to 28VDC Volts Non-polarized
Standby Current ≤50.uA@28VDC
Maximum Alarm Current(LED on) ≤2 .0mA@28VDC
Operating Humidity Range ≤95 %RH,Non -condensing
Operating Temperature Range -10℃ to 50℃
Load Capacity 1 Loop 24V@100mA
Load Capacity 2(Short “K“Terminal) Loop 24V@200mA
Dimensions 56mm*56mm*21.5mm
W eight: 53g
