价 格
订货量
￥42.00
1 - 99
￥38.00
100 - 999
￥33.00
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥1000
| 是否进口：否 | 产地：shenzhen | 品牌：ZOANCO |
| 型号：SG109 | 订货号：109 | 货号：109 |
| 额定电压：16-30（V） V | 额定电流：100（mA） mA | 安装方式：壁挂 |
| 重量：0.2（g） g | 适用范围：室内 | 外形尺寸：133mm×115mm×50mmmm |

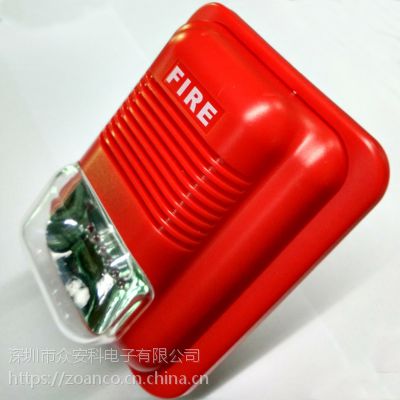

GENERAL DESCRIPTION
The Sounder strobe is a kind of audible and visual alarm device installed in field, which can be activated by fire alarm control panel in fire control center or by manual call point installed in field. After activated, it will generate strong audible/audible and visual alarm signal to warn people in field.
SPECIFICATIONS
Working voltage: 16VDC to 30VDC.
Alarm Current: ≤ 50mA.
Ambient temperature: -10℃ to +55℃.
Ambient humidity: ≤95%RH.
Sound level of alarm : ≥100dB.
Flash Intensity: ≥75CD
Flash Period:<1S
Life of flash light: >40000times
Dimensions: 133mm×115mm×50mm
L ×W×D(With base)
Weight: 141g
General The SG109 Sound Strobe of notification appliances offers a wide range of Sound/strobes, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems. Key Specifications/Special Features |
|
